Product Details
Place of Origin: China
Brand Name: Konja
Certification: GB/T36276 、GB/T34131 、UL1973 、UL9540A 、IEC62619 、UN38.3
Payment & Shipping Terms
Delivery Time: 60 Days
Payment Terms: T/T
Capacity: |
215kWh |
Rated Power: |
100kw |
Battery Cell Type: |
LFP 3.2V/280Ah |
Depth Of Charge: |
80% DOD |
Dimension: |
1200× 1200× 1900 Mm |
Weight: |
2000Kg |
Ingress Protection: |
IP54 |
Cooling Type: |
Intemal Air Conditioning With Independent Temperature Cntrol |
Capacity: |
215kWh |
Rated Power: |
100kw |
Battery Cell Type: |
LFP 3.2V/280Ah |
Depth Of Charge: |
80% DOD |
Dimension: |
1200× 1200× 1900 Mm |
Weight: |
2000Kg |
Ingress Protection: |
IP54 |
Cooling Type: |
Intemal Air Conditioning With Independent Temperature Cntrol |

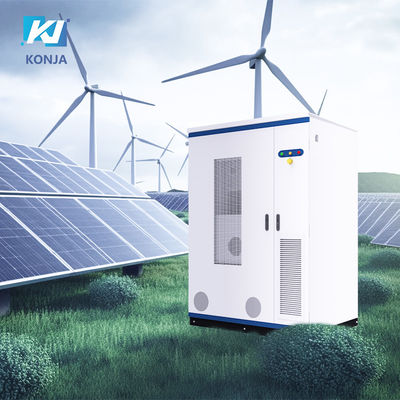

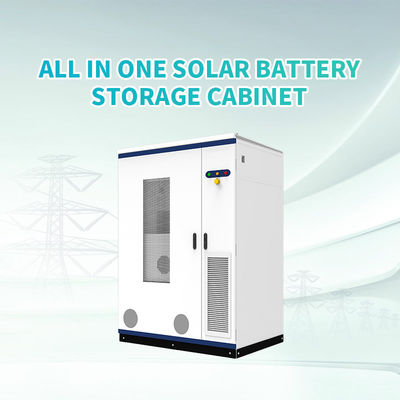

1.Outdoor Energy Storage Cabinet is a modular, flexible battery system that is easily and cost-effectively scalable from 215kWh to megawatts. It integrates battery cells, BMS, HVAC, and fire suspension in a high IP outdoor cabinet, which is pre-engineered & pre-tested to save installation times and costs.
2. The system uses CATL LiFePO4 chemical material for the highest level of safety, thermal stability, and reliability.
3.The system enables its users to reduce energy costs and makes the network more resilient by actively managing the timing and profile of their energy usage through Peak-shaving, load-shifting, etc.
| Product Technical Specification | |
|---|---|
| Model | 100kw / 215kwh |
| Battery Cell Type | LFP 3.2V/2 80Ah |
| Rated capacity | 215kwh |
| Lay out | 1P15S |
| RatedVoltage( DC) | 768V DC |
| Depth of Charge | 80% DOD |
| Rated Power | 100KW |
| Rated Voltage( AC) | 400V AC |
| Rated Current | 145A |
| Cooling Type | Internal Air Conditioning with Independent Temperature Control |
| Ingress Protection | IP54 |
| Working Temperature | -10~45C |
| Relative Humidity | 5%-95%RH,without Condensation |
| Fire Extinquishing System | FM-200(Novec 1230 Optional) |
| Dimension | 1200× 1200× 1900 Mm |
| Weight | 2000Kg |
1.Batteries and cabinet are shipped separately
2.Batteries are packed with carton+wooden.
1. What are the features and advantages of KonJa Energy Storage Cabinets?
KonJa Energy Storage Cabinets offer the following features and advantages:
Advanced Technology: KonJa Energy Storage Cabinets utilize advanced battery technology and energy management systems to ensure efficient energy storage and release.
Reliability: KonJa Energy Storage Cabinets undergo rigorous testing and quality control, providing excellent stability and reliability.
Safety: KonJa Energy Storage Cabinets incorporate multiple safety protection mechanisms, ensuring reliable operation and preventing potential safety risks.
Flexibility: KonJa Energy Storage Cabinets are designed with scalability and modularity, allowing flexible configuration and upgrades based on customer needs.
2. Which application areas are KonJa energy storage cabinets suitable for?

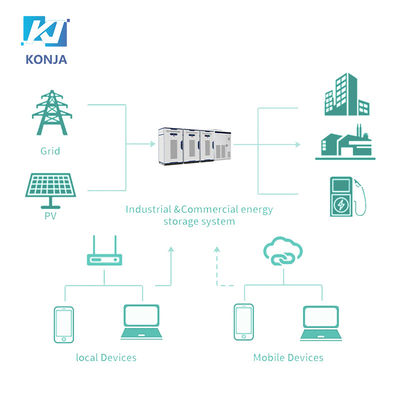

KonJa Energy Storage Cabinets can be widely used in residential, commercial, and industrial sectors for the following applications:
Renewable Energy Storage: Storing renewable energy from solar or wind power sources for self-consumption and reducing reliance on traditional energy sources.
Backup Power: KonJa Energy Storage Cabinets can provide reliable backup power in the event of grid outages or emergencies, ensuring the operation of important equipment.
Load Shifting: By storing excess electricity during low-demand periods and releasing it during peak demand, Energy Storage Cabinets help the balance the power grid and reduce electricity costs.
3. Does Konja energy storage cabinet support customized services?
Yes, KonJa Energy Storage Cabinets can be customized to meet customer requirements. Our professional team will collaborate with customers to design and customize Energy Storage Cabinet solutions based on specific application needs and Venue restrictions.
4. How's after-sales service of KonJa Energy Storage Cabinets?
KonJa is committed to providing excellent after-sales service. Our customer service team offers prompt response and technical support to address customer inquiries and resolve issues.
