| Brand Name: | KonJa |
| Model Number: | 2.58MWh |
| MOQ: | 1 pc |
| Payment Terms: | T/T |

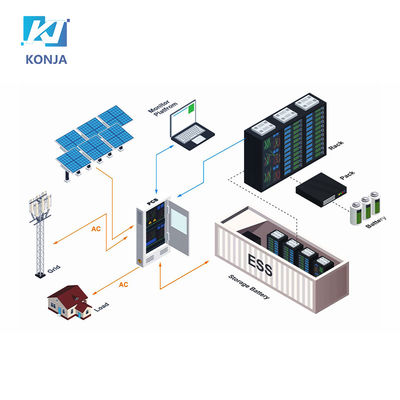

Container Energy Storage System is an battery energy storage system that provides modular, reliable, and efficient energy storage solutions. This system is designed with a maximum nominal energy of 2580 kWh, a voltage range of 672-864V, a dimension of 40 FT standard container which measures 12192*2438*2896 mm, and the weight is about 34000kg. This system is powered by a lithium-ion battery, ensuring high performance and energy efficiency. With its easy installation and maintenance, it is a great choice for Off-Grid/On-Grid energy storage applications.
| Produ Technical Parameter | |
| Optional Capacity | 1MW/ 2.58 MWh |

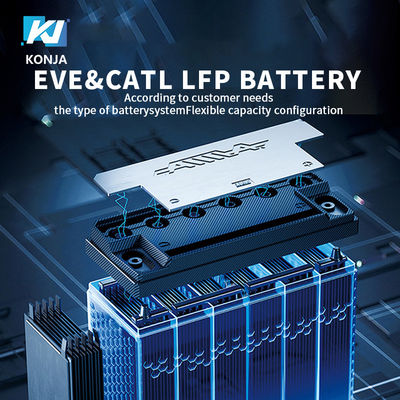

| Battery Cell Parameter | LFP-3.2V-280Ah-896 Wh |
| Module Parameter | LFP-51.2V-280Ah-14.336 kWh(1P16S) |
| Max. DC Current | 1400A*2 |
| DC Voltage Range | 672~864Vdc |
| Charge and Discharge Ratio | 0.5C |
| Cycle Life | 8000 Cycles (90%DOD, 70%EOL) |
| BMS Scheme | Active Equalization+ Threelevel Architecture |
| Communication Interface | Ethernet/RS-485/CAN |
| communication Protocol | Modbus-TCP/IEC61 8 50/ 104 |

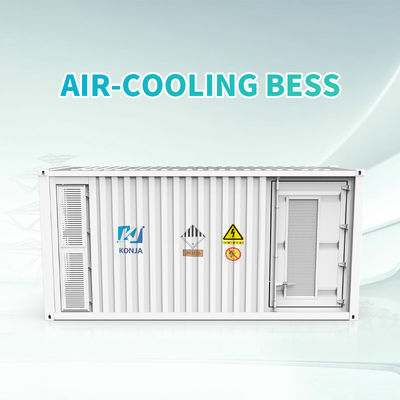

| Temperature Control Scheme | Intelligent Variable Frequency Air-Cooling |
| Fire Extinguishing Scheme | Gas/ Smoke/ TemperatureDetection!HeptafluoropropanelWater1Perfluorohexanone( Optional)+Active Air Exhaust |
| Rated AC Voltage | 400 Vac (3W+PE) |
| Rated AC Power | 1000 kW |
| Max.AC Current | 2000A |
| Power Factor | 0.99(Adjustable Extent- 1~+ 1) |
| Rated Working Frequency | 50Hz/60Hz( Settable) |
| Max. Harmonic Distortion | <3 %( Rated Power) |
| DC Component | <0.5% |
| Insulation Resistance | >3 MQ |
| Altitude | <5000m(>3000m Capacity Reduction) |
| Allowable Ambient Temperature | -30~+50°C |
| Allowable Relative Humidity | 0 .-95% Rh( without Condensation) |
| Ingress Protection | IP55 |
| Corrosion- proof Grade | C4( C5 Optional) |
| Dimension(L*W*H) | 12192*2438*2896 mm |
Konja Container Energy Storage System is an Off-Grid/On-Grid energy storage system with a nominal energy of up to 2580 kWh. It is also known as a containerised energy storage system, with a voltage range of 672-864V. The weight of the system is less than 26 tons and the battery type is lithium ion, offering a 5 years warranty. The minimum order quantity is 1 pc and the delivery time is 55-90days. The payment terms are T/T.
This energy storage system is suitable for a wide range of applications, such as residential, commercial, or industrial power grids. It can provide reliable and efficient electricity for remote areas, while it is also suitable for peak shaving, frequency regulation, and grid stability and integration. It helps to reduce the reliance on diesel generators, while also reducing the overall cost of electricity. The system can be easily installed and maintained, saving both time and money.
Konja Container Energy Storage System offers an excellent solution for those who are looking to have reliable and efficient electricity in areas which are not connected to the main power grid. It is a cost-effective and reliable solution for those who need a reliable source of electricity.
The Container Energy Storage System is packaged according to international shipping standards to ensure safe delivery. The system is secured to a pallet and protected with a waterproof shipping cover. The package is then sealed with plastic shrink wrap and reinforced with heavy-duty strapping for shipping.
